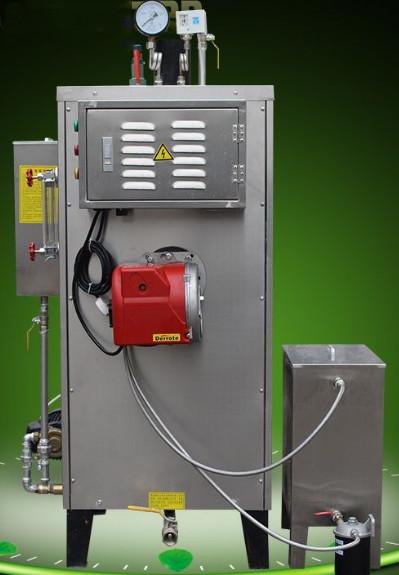

1. Reasonable design:
The steam generator body adopts a vertical ornamental structure,
connecting the upper and lower pipes of the body with two pipes
welded by two pipes, and performing three times. The performance
process is long, the heating area is large, and the configuration
of the structure is reasonable. Enemy. The burner is mounted at the
top of the body, and the flame is enough to expand and burn.
2. Efficient and economical:
the steam heating rate is over 92%, and the steam engine efficiency
should be 96%.
3. Manufacturing Specification:
All parts of steam generator are manufactured in strict accordance
with national and international standards (ISO), and the production
process strictly complies with the product quality.
4. Four Steam drying:
visceral steam separator of steam generator, high quality dry
steam. Steam helps eliminate unnecessary additional condensation,
save fuel, reduce system condensation and prolong service life.
5. reliable:
excellent steam generator specially designed, excellent production
technology, strict quality control, quality assurance of each steam
generator.
Technical Parameters
| Main Technical Reference for Fuel (Gas) Steam Generator |
| Item Unit | LSS0.05 | LSS0.1 | LSS0.15 | LSS0J2 |
| Rated evaporation | Kg/h | 50 | 100 | 150 | 200 |
| Rated Pressure PTEPREppoPressure | MPa | 0.4/0.7 |
| Rated steam temperature | c | 151/171 |
| Rated feed water temperature | °C | 20 |
| Evaporator efficiency | / | >92% |
| Applicable Fuel | / | Gas light oil |
| Theoretical fuel consumption | Gas | NM3/h | 4 | 8 | 12 | 16 |
| Light Oil | Kg/h | 3.3 | 6.5 | 9.8 | 13 |
| Gas supply pressure | mbar | 60- 100 |
| water volume | L | <30 |
Note: The fuel consumption in the table is based on the low calorific
value of biomass particles 17084 KJ/Kg (4085 Kcal/Kg).Calculations
show that if the low calorific value of biomass fuel is higher than
that, the corresponding fuel consumption will be more economical
than the values in the table.
| Configuration and Interface Size of Fuel (Gas) Steam Generator |
| Item Unit | LSS0.05 | LSSO.l | LSS0.15 | LSS0.2 |
Outward Size of Main Engine
(length * width * height) | / | mm | 620*620*830 | 690*690*968 | 750*750*1130 | 800*800*1286 |
Transport Dimension
| / | mm | 206 | 252 | 303 | 350 |
| Mainframe Transport Weight | DN | mm | G 1/2- | Gl' | Gl" | G 1* |
| Main Steam Valve Pipe Diameter | DN | mm | Gl/2" | Gl/2- | Gl/2- | Gl/2° |
| Feed Water Valve | DN | mm | G1 1/4” | G11/4- | G11/4- | G11/4- |
| Safety Valve Diameter | DN | mm | Gf | GF | Gl" | Gl" |
| Drain Valve Pipe Diameter | DN | mm | 133 | 133 | 159 | 159 |
Remarks: We will reserve rights to change the above mentioned data due to
continuous policy transformation and product improvement.
