Product Discription

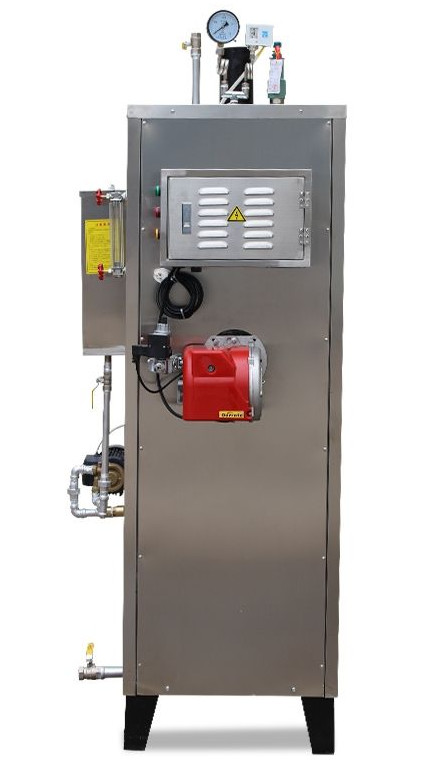

LSS Oil Fired Steam Generator

The vertical steam supplied by LSS accepts the vertical tube structure. A special protection tube between the two lower rings and the upper and lower protection tubes produces three gases. Zoom in and burn

For heat sinks and capacitors, the thermal efficiency can be 93% to 100%. Use steam - water separator and external steam. Water dispensers provide high-quality dry fuel savings, reduce system size and extend service life.

1. Easy to maintain:

There is an inspection door underneath for inspection and cleaning of the interior of the oven for easy maintenance.

2. Meet the environmental requirements:

Efficient and reliable burners burn all fuels but greatly reduce the emission of hazardous wastes. Test results of various departments show that gas (gas) vapor meets the environmental protection requirements of the environment.

3. The amount of evaporation can be increased:

The steam engine can be designed by many units (without restrictions) and can be controlled by a computer. You can add shared tasks. The plant produces a significant amount of steam energy (water purification, pumps, burners, electronic control panels and main valve blocks).

4. Installation complete:

Water, electricity and steam pipes can be connected to the site, saving time and installation effort.

5. Reliable accessories:

Provide vodka, control box, water purifier and valve, national pump quality equipment support. The support system provides safe and reliable steam operation that enables and improves the quality of steam power.

Technical Parameters

Main Technical Reference for Fuel (Gas) Steam Generator
Item Unit			LSS0.05	LSS0.1	LSS0.15	LSS0J2
Rated evaporation		Kg/h	50	100	150	200
Rated Pressure PTEPREppoPressure		MPa	0.4/0.7
Rated steam temperature		c	151/171
Rated feed water temperature		°C	20
Evaporator efficiency		/	>92%
Applicable Fuel		/	Gas light oil
Theoretical fuel consumption	Gas	NM3/h	4	8	12	16
	Light Oil	Kg/h	3.3	6.5	9.8	13
Gas supply pressure		mbar	60- 100
water volume		L	<30

Note: The fuel consumption in the table is based on the low calorific value of biomass particles 17084 KJ/Kg (4085 Kcal/Kg).Calculations show that if the low calorific value of biomass fuel is higher than that, the corresponding fuel consumption will be more economical than the values in the table.

Configuration and Interface Size of Fuel (Gas) Steam Generator
Item Unit			LSS0.05	LSSO.l	LSS0.15	LSS0.2
Outward Size of Main Engine (length * width * height)	/	mm	620*620*830	690*690*968	750*750*1130	800*800*1286
Transport Dimension	/	mm	206	252	303	350
Mainframe Transport Weight	DN	mm	G 1/2-	Gl'	Gl"	G 1*
Main Steam Valve Pipe Diameter	DN	mm	Gl/2"	Gl/2-	Gl/2-	Gl/2°
Feed Water Valve	DN	mm	G1 1/4”	G11/4-	G11/4-	G11/4-
Safety Valve Diameter	DN	mm	Gf	GF	Gl"	Gl"
Drain Valve Pipe Diameter	DN	mm	133	133	159	159

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
