    Large Volume Oil Central Heating Boiler Reasonable Design Excellent Expansibility

    Ask Lasest Price
    Brand Name : Yuji
    Model Number : Gas&Oil Fired Hot Water Boiler
    Certification : ISO CE
    Price : Negotiable
    Supply Ability : 5 sets
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Large Volume Oil Central Heating Boiler Reasonable Design Excellent Expansibility

    Product Discription

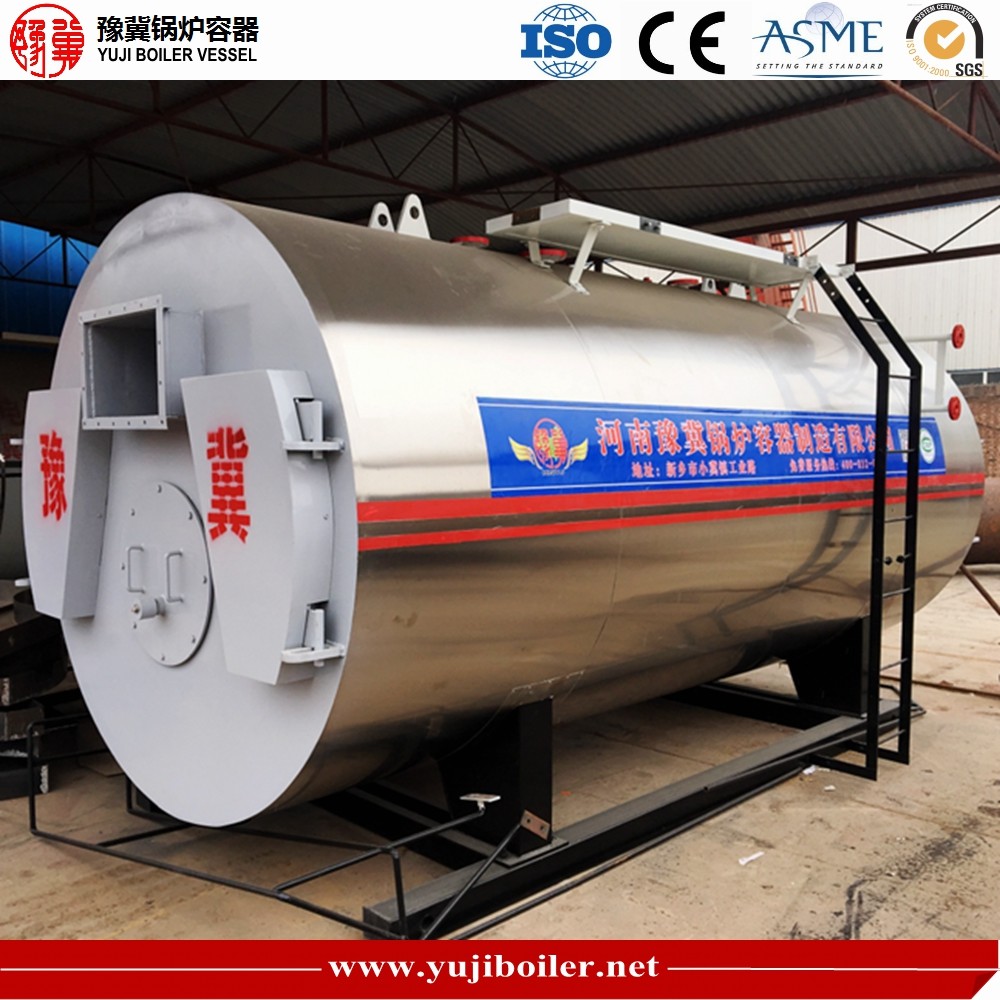

    WNS Series Pressure Horizontal Oil Fired Hot Water Boiler


    WNS series pressure horizontal oil & gas fired hot water boiler is fast loading structure, internal combustion, three-pass fire tube boiler, use wet back structure, high temperature flue gas scour second-pass and third-pass fire tubes one after another, and then discharge into atmosphere from back smoke box and condenser, chimney. Boiler equip with mobile front and back smoke box cover, convenient maintenance.

    Product Features

    1. Reasonable design: Horizontal internal combustion three-return full wet back structure, water-in-fire design, wavy furnace gallbladder, with good expansibility.It has sufficient heating area and reasonable structure layout.


    2. High efficiency and energy saving: corrugated furnace gallbladder, threaded flue gas pipe, large space combustion chamber with reasonable structure layout, in order to achieve low energy consumption.With high efficiency of heat transfer, the thermal efficiency of the boiler can reach more than 96%.


    3. Manufacturing Specification: Each component of the boiler is manufactured in accordance with the national and international standards (ISO).


    4. Large water volume: Boiler has large water volume, handling fluctuation of load and variation of peak value, so as to make the operation condition stable.


    5. Longevity and durability: Professional boiler design and rigorous quality control guarantee the quality of all Yuji boilers. The life of the boilers used is more than 20 years.


    6. Easy maintenance: front and rear movable smoke box doors, rear inspection holes can enter the furnace for inspection and cleaning. Opening Manhole in Ontology. Head holes and hand holes, structural design fully considers future maintenance.


    Large Volume Oil Central Heating Boiler Reasonable Design Excellent Expansibility


    Technical Parameters

    Main Technical Parameters of WNS Series Pressure Hot Water Boilers

    Item TypeWNS0.35WNS0.7WNS1.4WNS2.8WNS4.2WNS7WNS105WNS14
    Rated Heat EfficiencyMW0.350.71.44.2710.514
    Rated Working PressureMPa0.71.01.01.01.01.01.01.25
    Rated Effluent temperature°C9595115115115115115115
    Return water temperature°C7070707070707070
    Efficiency/>96%
    Design Fuel/Natural gas, liquid gas, city gas, light oil

    Fuel

    Theoretical consumption

    gasNM3/h377414628843472910801450
    Liquid gasKg/h29581162323505868691149
    City GasNM3/h79157305603943157223473141
    Light OilKg/h31621192373576029031203
    Natural gasmbar70-100100-150100-150150-200150-200150-200150-300150-300
    City gasmbar100200100-200100-200150-200150-200150-200150-300150300
    Rated water circulationM³/h122426.6753.3380133.33200266.67
    water capacityM31.15.26.267.19914.126.935.2

    Note: The fuel consumption in the table is calculated by low calorific value of light oil 42915KJ/Kg (10260Kcal/Kg), low calorific value of natural gas 35588KJ/NM3 (8500Kcal/NM3), low calorific value of liquefied gas 45998KJ/Kg (11000Kcal/Kg), low calorific value of urban gas 16750K/NM3 (4000Kcal/NM3).


    Configuration and Interface Dimensions of WNS Series Pressure Hot Water Boilers

    ItemtypeWNS0.35WNS0.7WNS1.4WNS2.8WNS4.2WNS7WNS105WNS14

    Host transport dimensions

    (length * width * height)

    /mm

    2949*14

    54*1707

    3198*18

    80*2166

    4131*22

    47*2422

    4928*22

    50*2600

    5401*24

    06*2650

    6280*26

    40*3176

    7804*33

    93*3540

    9120*44

    00*4100

    Host Weight/t2.85810.517.8193548
    Outlet Valve DiameterDNmm5065100125125200200200
    Backwater Valve DiameterDNmm5065100125125200200200
    Atmospheric Connecting Pipe DiameterDNmm40502,402*502,652,802*1002*150
    Drainage Valve DiameterDNmm40402*402*402,402*402*502*50
    Chimney diameterDNmm25028035040060075010001100

    Note: Due to the continuous updating of products, the company reserves the right to modify the data in the above two tables.
