Product Discription

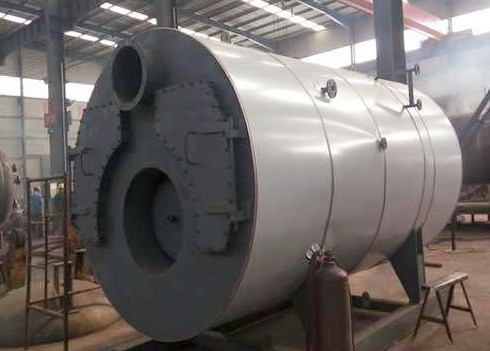

WNS Series Horizontal Biomass Gas Fired Steam Boiler

The horizontal biomass gas boiler of the WNS series is a rapid installation structure, the three-way internal combustion fire-tube boiler adopts a compensated humid back-up structure, the high-temperature combustion gas strips The second three-step fire tube is then unloaded from the rear smoke box and the chimney. Enter the atmosphere. The boiler is equipped with a mobile front and rear cover of the smoke box for easy maintenance.

Product Features

1. Ease of installation:

The plant boiler is generally fast, easy to transport and installation in situ, which greatly reduces the construction cycle, saving installation costs, the boiler can be put into operation in the weather.

2. Reliable operation:

provision of boiler heating surfaces is reasonable, smooth water cycle, each heating surface cooling quickly, effectively guaranteeing the safe operation of the boiler.

3. service capacity:

Boiler drum, registration wells, can enter the maintenance. Opening the boiler before the smoke box is very convenient, the staff can check with ease and clarity the smoke box, always good conditions for the correct treatment.

4. Full combustion:

By means of secondary air and the design of the furnace reasonable, the complete combustion of the fuel and the black smoke can be eliminated.

5. efficient grid:

ventilation grid of the double-sided boiler, the technology of dust removal for the natural discharge zone on the front of the boiler, to avoid leakage, leakage, uneven ventilation, easy to operate, with the ordinary grille has Evident advantages in comparison.

6. Ash in a convenient way:

A plurality of holes can be provided in the boiler ash, the ash can be effectively removed promptly, and to avoid annoying operations because the thermal efficiency of the boiler decreases due to the accumulation of ash, Stability of the boiler load.

Technical Parameters

Main Technical parameters of WNS Biomass Gas-fired Steam Boiler

Note: the fuel consumption in the table is low calorific value 17084KJ/Kg (4085Kcal/Kg) for biomass particles, 35588KJ/NM3 (8500Kcal/NM3) for natural gas, and 45998KJ/Kg (11000Kcal/Kg) for liquefied gas. Low calorific value of city gas 16750KJ/NM3 (4000Kcal/NM3), low calorific value of furnace gas 5650KJ/NM3 (1351Kcal/NM3), low calorific value of light oil 42915KJ/K G (10260Kcal/Kg) calculation

External and Interface Dimension of WNS Biomass Gas Steam Boiler

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
