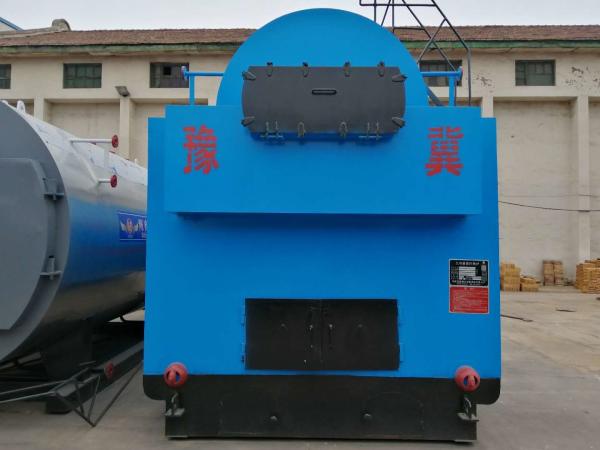

High Efficiency Hand Coal Fired Domestic New Biomass Steam Boiler
DZL SeriesBiomass Steam Boiler
DZL series new steam boiler combustion chain single boiler hot and
cold water boiler. Cold water walls emanated from both sides of the
boiler.
The bottom of the oven tube is newly processed, the two wings of
the oven have a power receiving area (57 x 3), and the powder tube
has a chimney. The boiler wall is made of CA resistant cement.
Knowledge point and the exterior of the boiler are three shells.
Product Features
1. Installation Facilities:
Heroic usually installs fast installation equipment, flexible
equipment transport and equipment installation, which greatly
reduces the construction cycle and provides a comfortable
environment for customers.
2. Operation failed:
The boiler is completely filled with water and cooled in a timely
manner.
3. Maintenance equipment:
The drawer in front of the boiler can be easily and clearly
inspected. These are good conditions for proper operation.
4. Combustion
The coating system is reasonable and the water circulation is
flexible.
5. Life and sustainable development:
Cooling is excellent advanced production equipment with strict
quality control. Every new boiler has quality assurance.
6. Bass Level:
The characteristics of the boiler must meet national environmental
requirements such as combustion chamber gas discharge temperature,
high-performance scrubbers and low-noise air.
Technical Parameters
Main Technical Parameters of DZL Biomass Series Steam Boiler
| Item | Unit | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 |
| Steam Capacity | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
| Working Pressure | MPa | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 |
| Steam Temperature | ℃ | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 |
| Feed Water Temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 | 60 |
| Thermal Efficiency | / | ≥82% |
| Fuel | / | Biomass particles |
| Fuel Consumption | Kg/h | 176.6 | 352.3 | 571 | 522 | 1044 | 1396.5 | 1743.3 |
| Heating area | m2 | 39.82 | 86 | 120.2 | 174.32 | 220.6 | 317 | 409 |
| Grate area | m2 | 1.97 | 3.2 | 4.8 | 5.5 | 7.04 | 11.7 | 13.6 |
| Power consumption | Kw | 18 | 26 | 31.5 | 34 | 62.4 | 76.4 | 87.2 |
| water volume | m3 | 4.5 | 4.68 | 5.9 | 6.3 | 11 | 13.8 | 16.5 |
Note:biomass particles 17084KJ/Kg (4085Kcal/Kg). If the low
calorific value of biomass fuel is larger than this value, the
corresponding fuel consumption will be more economical than the
value in the table.
External and Interface Dimension of DZL Biomass steam boiler
| Item | Unit | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 |
| Steam Capacity | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
Transport Dimension
| L | mm | 5100 | 6140 | 6330 | 6880 | 7290 | 7800 | 8500 |
| W | mm | 2200 | 2600 | 2700 | 2700 | 3190 | 3400 | 3400 |
| H | mm | 2900 | 3300 | 3300 | 3300 | 3700 | 3700 | 3700 |
| Mainframe Transport Weight | / | t | 15 | 18 | 24 | 27 | 31 | 33 | 41 |
| Main Steam Valve Pipe Diameter | DN | mm | 65 | 80 | 100 | 100 | 125 | 150 | 150 |
| Feed Water Valve | DN | mm | 40 | 40 | 40 | 40 | 50 | 50 | 50 |
| Safety Valve Diameter | DN | mm | 2*40 | 2*50 | 2*50 | 2*50 | 50/80 | 2*80 | 2*80 |
| Drain Valve Pipe Diameter | DN | mm | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 |
| Chimney Diameter | φ | mm | 280 | 350 | 410 | 410 | 530 | 720 | 750 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
