Product Discription

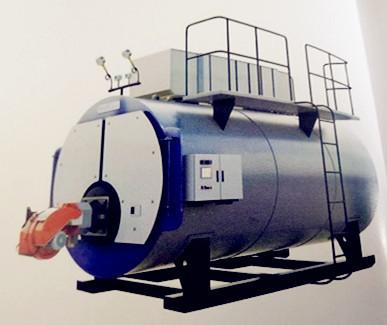

WNS Condensing Steam Boiler

This product model is WNS, is a horizontal internal combustion three-way fuel (gas) fast-mounted one-piece boiler, the body adopts a wet-back structure. The waveform tank and the ignition chamber are the first return, the second is the smoke pipe, and the third is composed of the economizer and condenser. The boiler is equipped with perfect automatic control device and safety protection device to realize automatic control of water level and alarm of minimum water level, stop furnace, automatic ignition of boiler, automatic adjustment of burner fire and protection of extinguishment to ensure safe operation of boiler.

The product is designed to fuel light oil, natural gas, etc. The fuel is ejected from the burner, ignited by an electronic ignition rod, burned under slight positive pressure in the hearth, and the high-temperature flue gas after burning is turned 180 °through the return chamber into the threaded smoke pipe, and into the front smoke box through the smoke pipe. And through the top chimney seat of the front smoke box into the economizer, the flue gas temperature and heat transfer in the economizer, then into the condenser for further cooling and heat transfer, the flue gas after full cooling passes through the outlet of the chimney seat at the rear of the condenser. Enter the chimney and drain into the atmosphere.

Product Features

1. Reasonable design:

Horizontal internal combustion three-return full-wet back structure, 100% water-in-fire design, 100% corrugated furnace gallbladder, has good expansibility, sufficient heating area and reasonable structure layout.

2. High efficiency and energy saving:

Corrugated furnace gallbladder, threaded flue gas pipe, large space combustion chamber with reasonable structure layout, to achieve low energy consumption, high efficiency of heat transfer, boiler thermal efficiency can reach more than 96%, if equipped with condenser, the efficiency can reach more than 100%.

3. Manufacturing specifications:

Each part of the boiler is manufactured in accordance with the national and international standards (ISO). Every production link strictly follows the advanced production technology to ensure the reliability of product quality.

4. Large steam space:

Boilers have sufficient steam space to handle fluctuations in load and peak values and provide high-quality drying steam, because drying steam helps to eliminate unnecessary additional condensation, thus saving fuel consumption, reducing system scaling and prolonging service life.

5. Longevity and durability:

Professional excellent design, advanced production technology and strict quality control of boilers are the guarantee of the quality of every boiler in Henan and Hebei. The service life of normal boilers is more than 20 years.

6. Easy maintenance:

A movable smoke box door is arranged at the front and back, and a check hole is arranged at the back for inspection and cleaning of the furnace. Manholes, head holes and hand holes are provided on the body, and the future maintenance is fully considered in the structural design.

Technical Parameters

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
