Product Discription

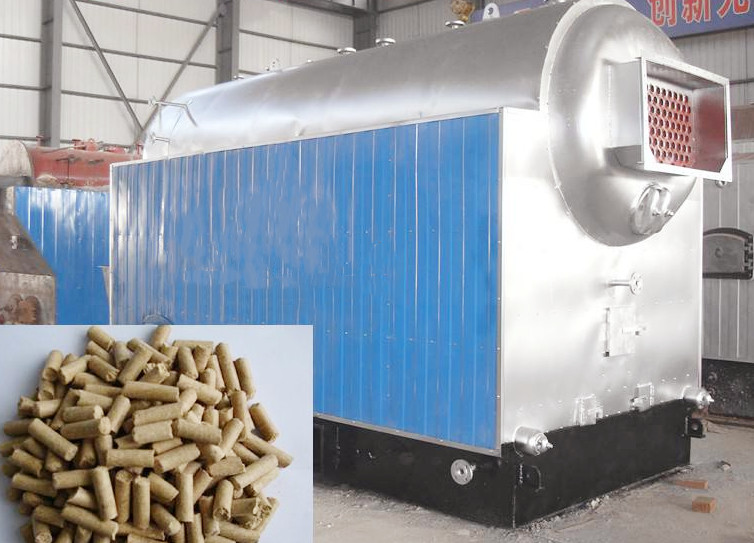

DZH Series Manual Coal Fired Steam Boiler
Coal-fired steam using grating, DZH series of mobile business, with
a blower fan, and dust automatically, Stunts, steam headers,
control cabinets, valves and other auxiliary equipment and tools.
Series less auxiliary equipment, boiler, so the low mechanical
failure, low maintenance cost, easy operation, saving time and
materials to save a boiler. All types of coal, environmental
protection, affordable price position, applicable to small and
medium-sized enterprises of the steam processing line is the first
choice.
Product Features
1. Easy to install:
The boiler installation usually cost-saving, easy to transport,
greatly reducing the construction cycle and the On-site
installation, is installed outside the plant, the boiler can be put
into production in a timely manner.
2. Reliable operation:
The rationale for heat effectively plan, water circulation and
smooth surface of the boiler, so as to ensure a safe operation to
ensure timely cold heat.
3. Easy maintenance:
The boiler barrel equipped with a manhole can be modified and
checked. Boiler smoke box in front of the easy opening can be
checked easily and clearly, the conditions for the correct
treatment.
4. Combustion:
The second air oven and through logical design can eliminate smoke,
fuel can be completely combusted.
5. grate save:
Biomass fuel with grate boiler fuel leak, air leakage is to be
consistent and avoid uneven ventilation. There are simple ordinary
grate compared to the obvious advantages.
6. simplified to:
Boiler ash stability, to ensure timely and effective collection of
blue boiler and heat caused by a less effective operation of
avoiding obstacles, to remove the blue hole, a plurality is
installed on boiler load.
Technical Parameters
Main Technical Parameters of DZH Series Biomass Steam Boiler
| Item | Unit | DZH1 | DZH2 | DZH3 | DZH4 | DZH6 | DZH8 | DZH10 |
| Steam Capacity | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
| Working Pressure | MPa | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 |
| Steam Temperature | ℃ | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 |
| Feed Water Temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 | 60 |
| Thermal Efficiency | / | ≥82 |
| Fuel | / | Biomass particles |
| Fuel Consumption | Kg/h | 176.6 | 352.3 | 522.5 | 697 | 1044 | 1396 | 1744 |
| Heating area | m2 | 39.82 | 82 | 120.2 | 174.32 | 239 | 317 | 409 |
| Grate area | m2 | 1.97 | 2.7 | 4.1 | 5.43 | 6.7 | 10.2 | 13.6 |
| Power consumption | Kw | 13.7 | 18 | 31.5 | 31.5 | 45 | 69.2 | 95.5 |
| water volume | m3 | 4.5 | 4.68 | 5.9 | 6.3 | 11 | 13.8 | 16.5
|
Note: The fuel consumption in the table is calculated on the basis
of the low calorific value of biomass particles 17084KJ/Kg
(4085Kcal/Kg). If the low calorific value of biomass fuel is larger
than that, the corresponding fuel consumption will be more
economical than that in the table.
Shape and Interface Dimensions of DZH Series Hand-fired Biomass
Steam Boilers
Type Item | DZH1 | DZH2 | DZH3 | DZH4 | DZH6 | DZH8 | DZH10 |
| Rated Steam Capacity | | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
Host Transport Dimension | L | mm | 4300 | 5140 | 5630 | 5920 | 6200 | 6800 | 7500 |
| W | mm | 1900 | 2500 | 2700 | 2700 | 2960 | 3400 | 3400 |
| H | mm | 2900 | 3100 | 3300 | 3430 | 3580 | 3600 | 3700 |
| Host Transport Weight | / | t | 13.6 | 18 | 23 | 25.3 | 31 | 34 | 39 |
| Main Steam Valve Pipe Diameter | DN | mm | 65 | 80 | 100 | 100 | 125 | 150 | 150 |
| Feed Water Valve | DN | mm | 40 | 40 | 40 | 40 | 50 | 50 | 50 |
| Safety Valve Diameter | DN | mm | 2×40 | 2×50 | 2×50 | 2×50 | 50/80 | 2×80 | 2×80 |
| Drain Valve Pipe Diameter | DN | mm | 3×40 | 3×40 | 3×40 | 3×40 | 3×40 | 3×40 | 3×40 |
| Chimney Diameter | φ | mm | 280 | 350 | 410 | 410 | 530 | 720 | 750 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
