1. In accordance with environmental requirements:
The high quality and reliable combustion can cause the fuel to burn
fully and significantly reduce the harmful emission of flue gas.
2. Evaporation may be increased:
Steam generators can be modulated in many units (unlimited number)
and controlled by computers. Total evaporation can be freely
increased.
3. Installation is a whole:
The installation may be connected to water, electricity and steam
pipes to save installation time and energy.
4.Reliable accessories:

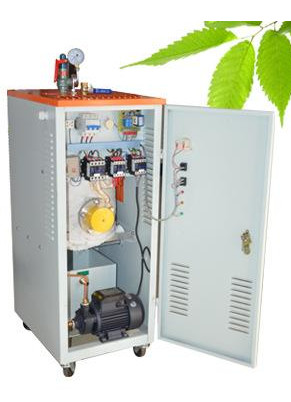

Combustion burners, control boxes, water treatment, valves, pumps
and other high -quality household appliances.
5. Excellent control system:
Boilers have a perfectly automatic control and a safety -responsive
device to implement an automatic water stop system and a low water
level alarm and shut -down; automatic control of vapour pressure
and over -pressure alarm.
6. Good service:
Technical consultation, technical services, installation
instructions, regular and irregular visits to users at any time to
provide quality and perfect service for users to be safe and to buy
Technical Parameters

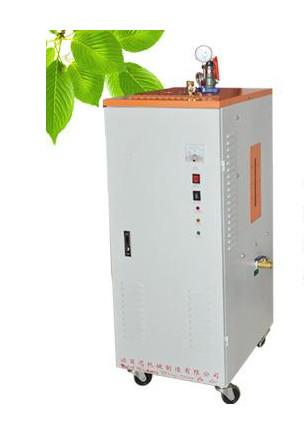

Main Technical Reference for Fuel (Gas) Steam Generator
| Item Unit | LSS0.05 | LSS0.1 | LSS0.15 | LSS0J2 |
| Rated evaporation | Kg/h | 50 | 100 | 150 | 200 |
| Rated Pressure PTEPREppoPressure | MPa | 0.4/0.7 |
| Rated steam temperature | c | 151/171 |
| Rated feed water temperature | °C | 20 |
| Evaporator efficiency | / | >92% |
| Applicable Fuel | / | Gas light oil |
| Theoretical fuel consumption | Gas | NM3/h | 4 | 8 | 12 | 16 |
| Light Oil | Kg/h | 3.3 | 6.5 | 9.8 | 13 |
| Gas supply pressure | mbar | 60- 100 |
| water volume | L | <30 |
Note: The fuel consumption in the table is based on the low
calorific value of biomass particles 17084 KJ/Kg (4085
Kcal/Kg).Calculations show that if the low calorific value of
biomass fuel is higher than that, the corresponding fuel
consumption will be more economical than the values in the table.
Configuration and Interface Size of Fuel (Gas) Steam Generator
| Item Unit | LSS0.05 | LSSO.l | LSS0.15 | LSS0.2 |
Outward Size of Main Engine
(length * width * height) | / | mm | 620*620*830 | 690*690*968 | 750*750*1130 | 800*800*1286 |
Transport Dimension
| / | t | 206 | 252 | 303 | 350 |
| Mainframe Transport Weight | DN | mm | G 1/2- | Gl' | Gl" | G 1* |
| Main Steam Valve Pipe Diameter | DN | mm | Gl/2" | Gl/2- | Gl/2- | Gl/2° |
| Feed Water Valve | DN | mm | G1 1/4” | G11/4- | G11/4- | G11/4- |
| Safety Valve Diameter | DN | mm | Gf | GF | Gl" | Gl" |
| Drain Valve Pipe Diameter | DN | mm | 133 | 133 | 159 | 159 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
