1. In accordance with environmental requirements:
High quality and reliable fuel can cause the fuel to burn
completely and significantly reduce harmful gas emissions.
2. Evaporation may be increased:
Steam production can be configured in many units (unlimited number)
and controlled by the computer.
3. The facility is complete:
The space can be connected to water, electricity and steam pipes to
save installation time and energy.
4. Reliable components:
Support burners, control boxes, water treatment, valves, pumps and
other high -quality household equipment.
5. Exceptional control system:
The boiler has a perfect automatic control device and safety device
for the application of an automatic water level control system; and
alarm and interruption of the water level; automatic steam pressure
control system and excess pressure alarm;
6. Good service:
Technical consultation, technical services, installation guidance,
regular and informal visits to users, at all times to provide
quality waste services, so that users can be quiet and buy
Technical Parameters

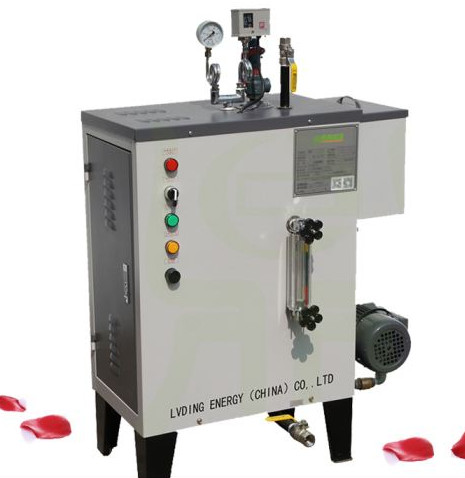

Main Technical Reference for Fuel (Gas) Steam Generator
| Item Unit | LSS0.05 | LSS0.1 | LSS0.15 | LSS0J2 |
| Rated evaporation | Kg/h | 50 | 100 | 150 | 200 |
| Rated Pressure PTEPREppoPressure | MPa | 0.4/0.7 |
| Rated steam temperature | c | 151/171 |
| Rated feed water temperature | °C | 20 |
| Evaporator efficiency | / | >92% |
| Applicable Fuel | / | Gas light oil |
| Theoretical fuel consumption | Gas | NM3/h | 4 | 8 | 12 | 16 |
| Light Oil | Kg/h | 3.3 | 6.5 | 9.8 | 13 |
| Gas supply pressure | mbar | 60- 100 |
| water volume | L | <30 |
Note: The fuel consumption in the table is based on the low
calorific value of biomass particles 17084 KJ/Kg (4085
Kcal/Kg).Calculations show that if the low calorific value of
biomass fuel is higher than that, the corresponding fuel
consumption will be more economical than the values in the table.
Configuration and Interface Size of Fuel (Gas) Steam Generator
| Item Unit | LSS0.05 | LSSO.l | LSS0.15 | LSS0.2 |
Outward Size of Main Engine
(length * width * height) | / | mm | 620*620*830 | 690*690*968 | 750*750*1130 | 800*800*1286 |
Transport Dimension
| / | t | 206 | 252 | 303 | 350 |
| Mainframe Transport Weight | DN | mm | G 1/2- | Gl' | Gl" | G 1* |
| Main Steam Valve Pipe Diameter | DN | mm | Gl/2" | Gl/2- | Gl/2- | Gl/2° |
| Feed Water Valve | DN | mm | G1 1/4” | G11/4- | G11/4- | G11/4- |
| Safety Valve Diameter | DN | mm | Gf | GF | Gl" | Gl" |
| Drain Valve Pipe Diameter | DN | mm | 133 | 133 | 159 | 159 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
