1. In accordance with environmental requirements:
High quality and reliable fuel can cause the fuel to burn
completely and significantly reduce harmful gas emissions. The
results the tests of the relevant sections show that the fuel (gas)
producer complies with national environmental protection
requirements.
2. Evaporation may be increased:
Steam production can be configured in many units (unlimited number)
and controlled by the computer. Total exhaust can be freely
increased.
3. The facility is complete:
The space can be connected to water, electricity and steam pipes to
save installation time and energy.
4. Reliable components:
Support burners, control boxes, water treatment, valves, pumps and
other high -quality household equipment. The auxiliary equipment
may be: ensure the safe and reliable operation of the steam
generator and improve the overall quality of the steam generator.
5. Exceptional control system:
The boiler has a perfect automatic control device and safety device
for the application of an automatic water level control system; and
alarm and interruption of the water level; automatic steam pressure
control system and excess pressure alarm; automatic boiler ignition
Dynamic control of the automatic combustion of the burner and
protection of extinction to ensure safe operation of the boiler.
The user only needs Press the start button slightly, and the steam
generator can push it.
6. Good service:
Technical consultation, technical services, installation guidance,
regular and informal visits to users, at all times to provide
quality waste services, so that users can be quiet and buy
Technical Parameters

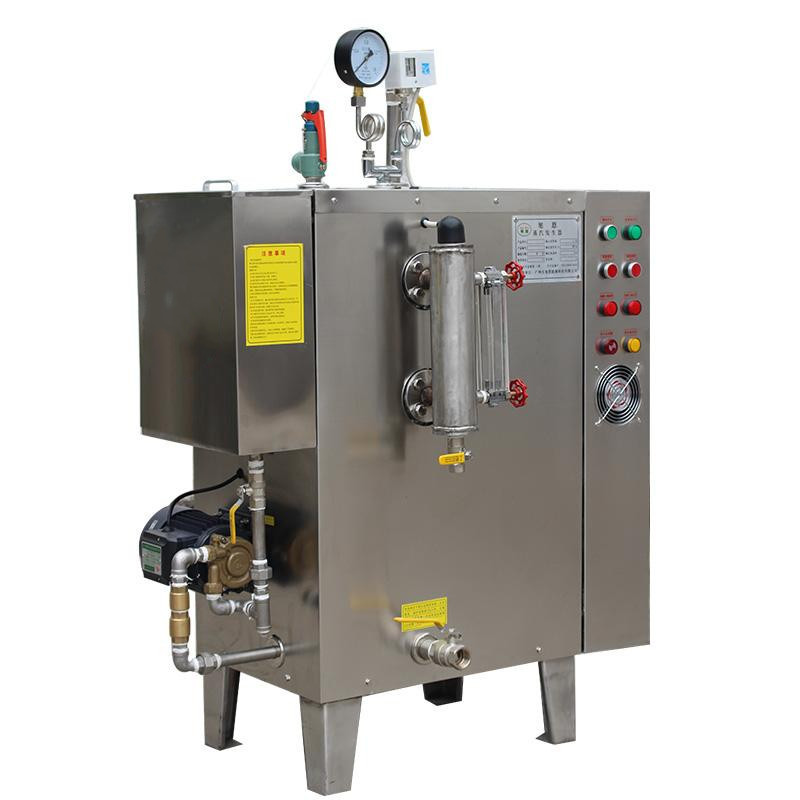

Main Technical Reference for Fuel (Gas) Steam Generator
| Item Unit | LSS0.05 | LSS0.1 | LSS0.15 | LSS0J2 |
| Rated evaporation | Kg/h | 50 | 100 | 150 | 200 |
| Rated Pressure PTEPREppoPressure | MPa | 0.4/0.7 |
| Rated steam temperature | c | 151/171 |
| Rated feed water temperature | °C | 20 |
| Evaporator efficiency | / | >92% |
| Applicable Fuel | / | Gas light oil |
| Theoretical fuel consumption | Gas | NM3/h | 4 | 8 | 12 | 16 |
| Light Oil | Kg/h | 3.3 | 6.5 | 9.8 | 13 |
| Gas supply pressure | mbar | 60- 100 |
| water volume | L | <30 |
Note: The fuel consumption in the table is based on the low
calorific value of biomass particles 17084 KJ/Kg (4085
Kcal/Kg).Calculations show that if the low calorific value of
biomass fuel is higher than that, the corresponding fuel
consumption will be more economical than the values in the table.
Configuration and Interface Size of Fuel (Gas) Steam Generator
| Item Unit | LSS0.05 | LSSO.l | LSS0.15 | LSS0.2 |
Outward Size of Main Engine
(length * width * height) | / | mm | 620*620*830 | 690*690*968 | 750*750*1130 | 800*800*1286 |
Transport Dimension
| / | t | 206 | 252 | 303 | 350 |
| Mainframe Transport Weight | DN | mm | G 1/2- | Gl' | Gl" | G 1* |
| Main Steam Valve Pipe Diameter | DN | mm | Gl/2" | Gl/2- | Gl/2- | Gl/2° |
| Feed Water Valve | DN | mm | G1 1/4” | G11/4- | G11/4- | G11/4- |
| Safety Valve Diameter | DN | mm | Gf | GF | Gl" | Gl" |
| Drain Valve Pipe Diameter | DN | mm | 133 | 133 | 159 | 159 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
