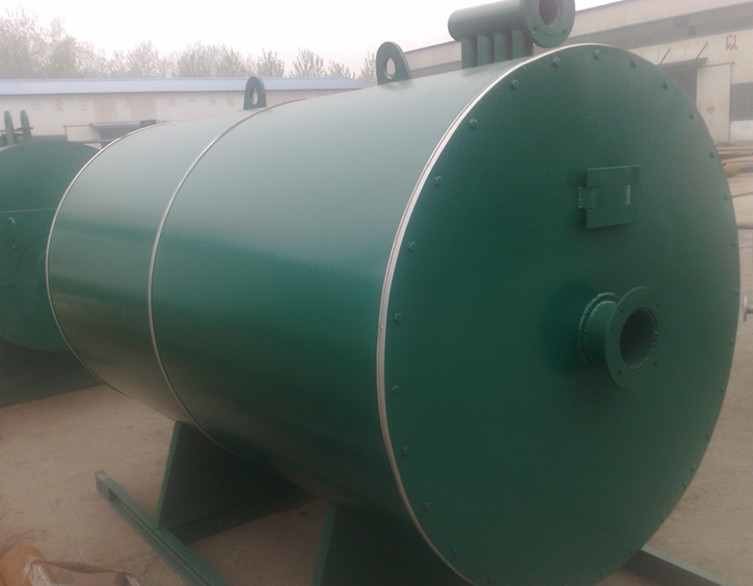

YY (q) in a boiler, also known as an organic heat heater, uses oil
and gas as a fuel, hot oil as a medium, medium circulating fluid,
transfers thermal energy to use a thermal device, returns to the R
heater, and then the heater, the heat obtained can fill at boiler
requirements.Low temperature gain is characterized by low
temperature. The temperature of the liquid heating can reach 320
and the temperature of the steam heating can reach 400. The heating
surface consists of inner, middle and outer (or inner and outer)
circular coils with a narrow arrangement.The internal coil absorb s
most of the heat from the surface of radiation heating and the high
-temperature flue -gas enters the convective surface of heating.Nd
heat transfer. The gas from the boiler's exhaust gas is absorbed by
the heat exchanger at the end of the boiler and released into the
atmosphere chimney.
Product Features
1. High security:
It is controlled by a computer and is equipped with thermal paint,
over -temperature and over -voltage protection device that is safe
and reliable.
2. Long life and durability:
An excellent professional design, advanced production technology,
strict quality control and control are the quality assurance of
each boiler. The normal life of the boiler is over twenty years.
3. Environmental protection and low noise:
The emission of flue -gases is low, with recycling of waste heat,
high efficient dust collection, low dust ventilator, so that the
flue -gas meets national environmental protection requirements.
4. Production standards:
Coiler components are manufactured in accordance with national and
international standards (ISO). All processes closely follow
advanced production technology to ensure product quality.
5. Good service:
Technical consultation, technical services, installation
instructions, regular and irregular tracking services for users at
all times to provide quality and perfect services to ensure that
our customers buy safely and use them well.
Technical Parameters
| Main Technical parameters of YY(Q)W Series Horizontal Oil & Gas Fired Thermal Oil Boiler |
| Item | Unit | YY(Q)W -1400Y(Q) | YY(Q)W -2100Y(Q) | YY(Q)W -3000Y(Q) | YY(Q)W -4200Y(Q) | YY(Q)W -6000Y(Q) | YY(Q)W -7000Y(Q) |
| Thermal Power | KW | 1400 | 2100 | 3000 | 4200 | 6000 | 7000 |
| Heat Supply | 104Kcal/h | 120 | 180 | 250 | 360 | 500 | 600 |
| Working Pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Rated oil output temperature | ℃ | 300 | 300 | 300 | 300 | 300 | 320 |
| Rated oil return temperature | ℃ | 280 | 280 | 280 | 280 | 280 | 300 |
| Thermal Efficiency | / | ≥92% |
| Fuel | / | Natural gas, liquefied gas, city gas, light oil |
| Fuel Consumption | Natural gas | NM3/h | 163 | 243 | 349 | 489 | 692 | 809 |
| Liquefied gas | Kg/h | 127.7 | 189.9 | 269 | 376.8 | 535.7 | 624.8 |
| City gas | NM3/h | 347.9 | 518.7 | 738.3 | 1036 | 1465.4 | 1706 |
| Light oil | Kg/h | 139.3 | 203 | 287.3 | 415.2 | 571 | 665 |
| Gas Feed pressure | Natural Gas | mbar | 50-100 | 50-100 | 50-100 | 50-100 | 100-200 | 100-200 |
| City Gas | mbar | 70-200 | 70-200 | 70-200 | 70-200 | 100-200 | 100-200 |
| Rated circulating oil quantity | M3/h | 82.95 | 125.5 | 177.7 | 248.8 | 355 | 413 |
| Mainframe Oil Volume | M3 | 1.19 | 1.6 | 2.2 | 3.92 | 4.3 | 5.9 |
Note: the fuel consumption in the table is based on light oil low
calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low
calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low
calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low
calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.
| Shape and Interface Dimensions of YY(Q)W Series Horizontal Oil & Gas Fired Thermal Oil Boiler |
| Item | Unit | YY(Q)W -1400Y(Q) | YY(Q)W -2100Y(Q) | YY(Q)W -3000Y(Q) | YY(Q)W -4200Y(Q) |
| Transport Dimension (L*W*H) | / | mm | 4424*1950*2243 | 5170*2250*2460 | 5808*2505*2820 | 7082*2970*3140 |
| Mainframe transport weight | / | t | 6.2 | 8.7 | 11 | 18 |
| Outlet Diameter | DN | mm | 125 | 125 | 150 | 200 |
| Return Pipe Diameter | DN | mm | 125 | 125 | 150 | 200 |
| Drain Valve Pipe Diameter | DN | mm | 25 | / | / | / |
| Discharge Pipe Diameter | DN | mm | 25 | 40 | 40 | 40 |
| Chimney Diameter | φ | mm | 350 | 400 | 500 | 600 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
