Number of kiln is 1600 mm.The side of the kiln housing is equipped
with a water cooling wall and a radioactive water heating
surface.Below 1600.Important.A process is introduced t of a melting
furnace.
Body structure, water -cooling wall panel 160, interior solution
160, 1600 *14, police 57 *3, 159 *6, 133 *6, 130, before and after
police use, high degree of combustion.
Product Features
1. Easy installation:
Boilers are usually equipped with fast loading equipment to
facilitate transportation and installation of equipment, thus
greatly shortening the construction period and service life. User
curiosity
2. Reliability of use:
Boilers are fully equipped with open water circulation.
3. Technical services:
The drawer in front of the pot is easy to open and the staff can
easily and clearly check, which is a good condition for correct
handling.
4. low noise:
The boiler has low temperature gas, high efficiency scrubber, low
noise tail fan and other performance, which meets the national
environmental protection standards. Clear requirements.
5.Total combustion
Reasonable arrangement of furnace lining, smooth water circulation,
timely cooling.
Technical Parameters

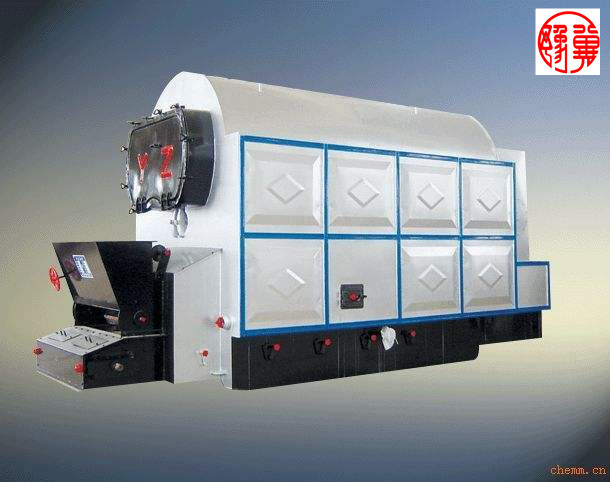

Main Technical Parameters of DZL Series Biomass Hot Water Boiler
| Item | Unit | DZL0.7 | DZL1.4 | DZL2.1 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7 |
| Thermal Power | MW | 0.7 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7 |
| Outlet Pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 |
| Outlet Temperature | ℃ | 95 | 95 | 95 | 95 | 95/115 | 95/115 | 95/115 |
| Feed Water Temperature | ℃ | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Thermal Efficiency | / | ≥83% |
| Fuel | / | Biomass particles |
| Fuel Consumption | Kg/h | 174.3 | 348.6 | 517 | 687.2 | 1024 | 1374.3 | 1708 |
| Heating area | m2 | 35.2 | 79.8 | 114.2 | 168 | 207.6 | 300.5 | 391 |
| Grate area | m2 | 1.97 | 3.2 | 4.8 | 5.5 | 7.04 | 11.7 | 13.6 |
| Power consumption | Kw | 18 | 26 | 31.5 | 34 | 62.4 | 76.4 | 87.2 |
| water volume | m3 | 5.1 | 5.58 | 6.95 | 9.3 | 14 | 17.8 | 20.5 |
Note: the fuel consumption in the table is calculated on the basis
of the low calorific value of biomass particles 17084KJ/Kg
(4085Kcal/Kg). If the low calorific value of biomass fuel is larger
than this value, the corresponding fuel consumption will be more
economical than the value in the table.
| Item | Unit | DZL0.7 | DZL1.4 | DZL2.1 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7 |
| Thermal Power | MW | 0.7 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7 |
Transport Dimension
| L | mm | 5100 | 6140 | 6330 | 6880 | 7290 | 7800 | 8500 |
| W | mm | 2200 | 2600 | 2700 | 2700 | 3190 | 3400 | 3400 |
| H | mm | 2900 | 3300 | 3300 | 3300 | 3700 | 3700 | 3700 |
| Mainframe Transport Weight | / | t | 15 | 18 | 24 | 27 | 31 | 33 | 41 |
| Outlet Water Valve | DN | mm | 80 | 100 | 125 | 125 | 150 | 200 | 200 |
| Feed Water Valve | DN | mm | 80 | 100 | 125 | 125 | 150 | 200 | 200 |
| Safety Valve Diameter | DN | mm | 1*32 | 1*50 | 2*40 | 2*40 | 2*50 | 2*50 | 2*50/80 |
| Drain Valve Pipe Diameter | DN | mm | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 |
| Chimney Diameter | φ | mm | 280 | 350 | 410 | 410 | 530 | 720 | 750 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
