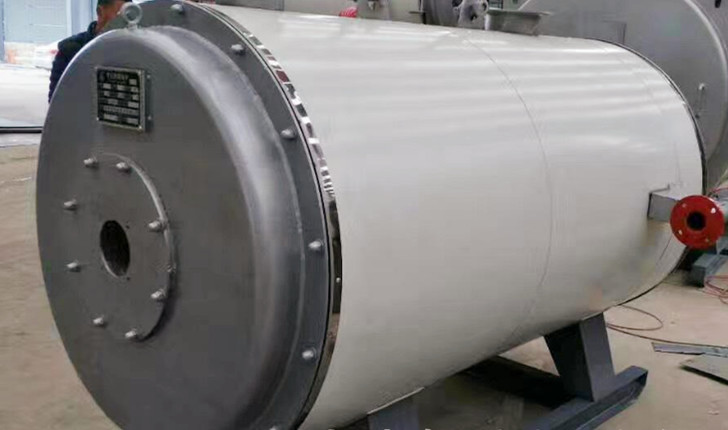

YY (q) w Caldeira, also known as organic boiler for heating, uses
oil and gas As fuel, hot oil As a medium of circulation, medium
liquid, transfers thermal energy to the USO of thermal equipment,
returns to the R heater and then warmed by the Heat obtained May
meet the requirements of the boiler. The acquisition of the low
temperature is characterised by the acquisition of the low
temperature. The liquid heating temperature can reach 320 and the
steam temperature can reach 400. The internal, medium and external
(or internal and external) circulars with a narrow arrangement.
Product Features
1. High security:
It is controlled by the computer and has thermal colour protection,
temperature protection and voltage protection that is safe and
reliable.
2. Long service life and durability:
Excellent professional design, advanced manufacturing technology,
strict quality control and control are the quality assurance of
each boiler.
3. Environmental protection and low noise pollution:
The exhaust emission of the boiler is low, with waste heat
recovery, high efficiency vacuum cleaner, low noise emission, so
that the exhaust gas emission complies with national environmental
protection requirements.
4. Production standards:
The boiler components are manufactured according to national and
international standards (ISO).
5. Good service:
Technical advice, technical services, installation instructions,
regular and irregular tracking services for users. so that at any
time to provide quality and perfect services to ensure that our
customers buy safely and use happily.
Technical Parameters
| Main Technical parameters of YY(Q)W Series Horizontal Oil & Gas Fired Thermal Oil Boiler |
| Item | Unit | YY(Q)W -1400Y(Q) | YY(Q)W -2100Y(Q) | YY(Q)W -3000Y(Q) | YY(Q)W -4200Y(Q) | YY(Q)W -6000Y(Q) | YY(Q)W -7000Y(Q) |
| Thermal Power | KW | 1400 | 2100 | 3000 | 4200 | 6000 | 7000 |
| Heat Supply | 104Kcal/h | 120 | 180 | 250 | 360 | 500 | 600 |
| Working Pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Rated oil output temperature | ℃ | 300 | 300 | 300 | 300 | 300 | 320 |
| Rated oil return temperature | ℃ | 280 | 280 | 280 | 280 | 280 | 300 |
| Thermal Efficiency | / | ≥92% |
| Fuel | / | Natural gas, liquefied gas, city gas, light oil |
| Fuel Consumption | Natural gas | NM3/h | 163 | 243 | 349 | 489 | 692 | 809 |
| Liquefied gas | Kg/h | 127.7 | 189.9 | 269 | 376.8 | 535.7 | 624.8 |
| City gas | NM3/h | 347.9 | 518.7 | 738.3 | 1036 | 1465.4 | 1706 |
| Light oil | Kg/h | 139.3 | 203 | 287.3 | 415.2 | 571 | 665 |
| Gas Feed pressure | Natural Gas | mbar | 50-100 | 50-100 | 50-100 | 50-100 | 100-200 | 100-200 |
| City Gas | mbar | 70-200 | 70-200 | 70-200 | 70-200 | 100-200 | 100-200 |
| Rated circulating oil quantity | M3/h | 82.95 | 125.5 | 177.7 | 248.8 | 355 | 413 |
| Mainframe Oil Volume | M3 | 1.19 | 1.6 | 2.2 | 3.92 | 4.3 | 5.9 |
Note: the fuel consumption in the table is based on light oil low
calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low
calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low
calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low
calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
