Product Discription

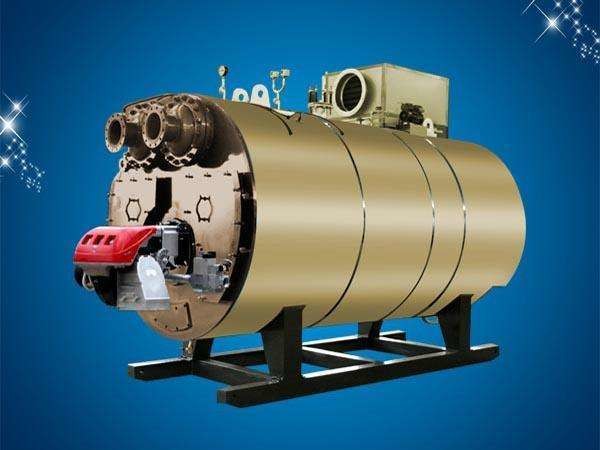

WNS Series Horizontal Biomass Gas Fired Steam Boiler

Horizontal WNS series biomass steam boiler is a fast -charging boiler, combustion plant, three -way boiler. It assumes a distorted back structure. High -temperature steam gas washes off the two - and three -way fire pipes and then discharges from the rear smoke into the atmosphere. Boxes and chimneys. The boiler is equipped with a movable front and rear smoke box that is suitable for maintenance.

Product Features

1. Convenient ash cleaning:

Many ash cleaning holes can be set up on the boiler, which can remove ash in time and effectively, avoid the trouble of operation and decrease of thermal efficiency caused by boiler ash accumulation, and ensure the stability of boiler load.

2. High safety:

The water supply is controlled by microcomputer, and the water is fed automatically. Equipped with water shortage, overpressure protection and other devices, safe and reliable.

3. Longevity and durability:

The professional excellent design of the boiler, the advanced production equipment and the strict quality inspection, is the guarantee of the quality of every new boiler boiler, and the service life of the normal boiler body is over 20 years.

4. Environmental protection and low noise:

The boiler's original smoke emission is low, and the boiler tail is equipped with high-efficiency dust remover and low noise fan, which makes the flue gas discharge meet the national environmental protection requirements.

5. Manufacturing specification:

Every part of boiler is manufactured in accordance with the national standard and international standard (ISO). Every production step is carried out in strict accordance with the advanced production process to ensure the quality of the product is reliable.

6. High-quality services:

Technical services, installation guidance, regular and irregular return service to users, at any time to provide high-quality and perfect services, so that users can buy at ease, with comfort.

Technical Parameters

Main Technical parameters of WNS Biomass Gas-fired Steam Boiler

Note: the fuel consumption in the table is low calorific value 17084KJ/Kg (4085Kcal/Kg) for biomass particles, 35588KJ/NM3 (8500Kcal/NM3) for natural gas, and 45998KJ/Kg (11000Kcal/Kg) for liquefied gas. Low calorific value of city gas 16750KJ/NM3 (4000Kcal/NM3), low calorific value of furnace gas 5650KJ/NM3 (1351Kcal/NM3), low calorific value of light oil 42915KJ/K G (10260Kcal/Kg) calculation

External and Interface Dimension of WNS Biomass Gas Steam Boiler

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
