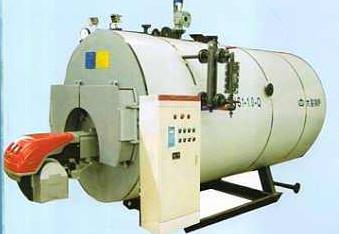

WNS Series Horizontal Biomass Gas Fired Steam Boiler
Installation and installation of WNS biomass horizontal gas boiler.
The indoor 3D water heater comes with a water heater, high pressure
cooker and second fire pit. Remove the smoke and smoke from the
back. Add air. The boiler is equipped with front and rear smoke box
covers for easy maintenance.
Product Features
1. Easy Installation:
As a rule, water heaters are easy to transport and install,
reducing construction time, saving on installation costs and
weather in harsh weather conditions.
2. Operation-based operation:
The ship has full air conditioning, air conditioning and quick
cooling water to ensure safe working atmosphere.
3. Work force:
Canoes can be arranged and registered properly. Opening the trunk
to the front of the box is very good, the staff can keep the box
open and show ideal conditions for proper disposal.
4. Full Summary:
Modern air conditioning and efficient heat management eliminates
smoke and black smoke.
5. Effective Networking:
The double glazed air filter has a removable air filter, designed
for natural waterproofing, drainage, lack of air and simplicity of
operation and has significant advantages over conventional grills.
6. Easy application of ash removal:
An ashes of oil may form a plurality of holes, and the ash will
evaporate as time goes on, and the action of the air conditioner
may be hampered by compressed air, thereby preventing performance
degradation. Stable due to excessive dust.
Technical Parameters
Main Technical parameters of WNS Biomass Gas-fired Steam Boiler
| | WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 | WNS6 |
| Steam Capacity | t/h | 0.5 | 1 | 2 | 3 | 4 | 6 |
| Working Pressure | MPa | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Steam Temperature | ℃ | 184 | 193 | 193 | 193 | 193 | 193 |
| Feed Water Temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 |
| Biomass Efficiency | / | ≥88% |
| Gas efficiency | / | ≥92% |
| Fuel | / | Biomass particles, natural gas, liquefied gas, city gas, producer
gas, light oil, etc. |
| Fuel Consumption | Biomass particles | Kg/h | 89 | 177 | 355 | 532 | 711 | 1059 |
| Natural gas | NM3/h | 38 | 75 | 149 | 223 | 298 | 446 |
| Liquefied gas | Kg/h | 30 | 60 | 119 | 177 | 237 | 359 |
| City gas | NM3/h | 81 | 160 | 318 | 473 | 634 | 950 |
| Producer gas | NM3/h | 258 | 517 | 1038 | 1541 | 2063 | 3111 |
| Light oil | Kg/h | 32 | 63 | 126 | 185 | 247 | 370 |
| Gas Feed pressure | Natural Gas | mbar | 50-100 | 50-100 | 50-100 | 50-100 | 50-100 | 50-100 |
| City Gas | mbar | 70-200 | 70-200 | 70-200 | 70-200 | 70-200 | 70-200 |
| Running water volume | M3 | 1.2 | 1.96 | 3.4 | 4.98 | 5.63 | 7.32 |
Note: the fuel consumption in the table is low calorific value
17084KJ/Kg (4085Kcal/Kg) for biomass particles, 35588KJ/NM3
(8500Kcal/NM3) for natural gas, and 45998KJ/Kg (11000Kcal/Kg) for
liquefied gas. Low calorific value of city gas 16750KJ/NM3
(4000Kcal/NM3), low calorific value of furnace gas 5650KJ/NM3
(1351Kcal/NM3), low calorific value of light oil 42915KJ/K G
(10260Kcal/Kg) calculation
External and Interface Dimension of WNS Biomass Gas Steam Boiler
| Shape and Interface Dimensions of WNS Biomass Gas Steam boilers |
| Item | Unit | WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 | WNS6 |
| Transport Dimension (L*W*H) | / | mm | 3220*1550*1720 | 3730*1790*2010 | 4240*2140*2182 | 4243*2453*2488 | 4473*2470*2736 | 4530*3010*3090 |
| Mainframe transport weight | / | t | 3.2 | 5.3 | 8.5 | 10.5 | 13 | 17 |
| Main Steam Valve Pipe Diameter | DN | mm | 40 | 65 | 80 | 100 | 100 | 125 |
| Feed Water Valve | DN | mm | 25 | 40 | 40 | 40 | 40 | 50 |
| Safety Valve Diameter | DN | mm | 40 | 2*50 | 2*50 | 2*50 | 2*50 | 2*80 |
| Drain Valve Pipe Diameter | DN | mm | 40 | 40 | 40 | 40 | 40 | 40 |
| Chimney Diameter | φ | mm | 250 | 280 | 350 | 400 | 400 | 600 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
