Product Description

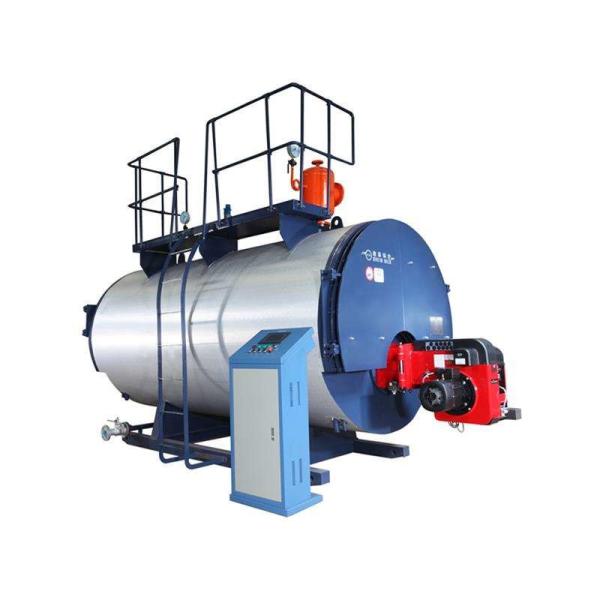

WNS Series High Efficiency Oil Fired Steam Boiler

The product model is Wns, which is a horizontal steam boiler with three internal combustion cycles (gas) that quickly loads with built -in wet -back. The wave -shaped gallbladder and refrigerant chamber are the first circuit, the second circuit is the flue -gas pipeline, and the third circuit consists of one single The boiler is equipped with a perfect automatic control device and a safety device for automatic control, a larm and shutdown of the lowest water level, automatic firing of the boiler, automatic setting of the burner's firepower and flame protection for a t ensure safe operation. Installation of boilers.

Water softening with boilers first enters the condenser and then returns to the soft water container after heating the condenser (cool the flue gas simultaneously).The heated soft water is pumped into the energy saver, which is further heated by the energy saver and then sent ed to the forehead.

Brief Introduction of Boiler Operating Conditions

The boiler can function steadily under 80%100% working conditions.Under 100% nominal load the operating parameters of the boiler are: feed water temperature 20C, nominal working pressure 1.2MPa and ten tons of steam 193.4C can be produced in one hour. If the fuel is natural gas, the calculated thermal effect is: 98.96%, exhaust temperature 48.93 degrees Celsius, and fuel consumption is 754.78Nm3 /h (product used for one day).Low calorific value for natural gas (>36.36MJ /Nm3)

Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance

Technical Parameters

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
