Product Description

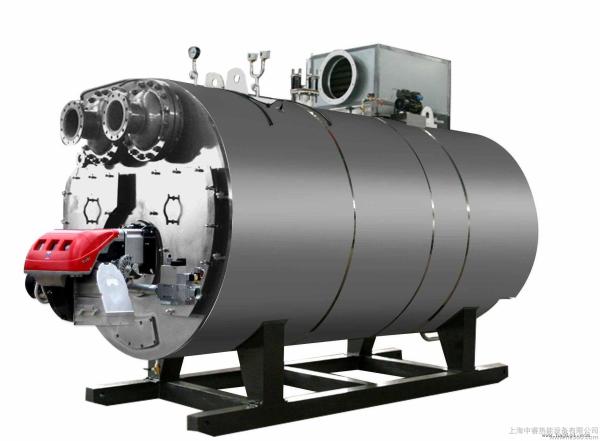

WNS Series High Efficiency Oil Fired Steam Boiler
The product model is a structural subsidy such as Wns furnace,
rapid integration of fuel (gas) which corrodes the internal
combustion gas three times. The wave-type furnace wall and re-fuel
chamber are gas pipeline one time, and the third one is composed of
energy saving and condenser. Boiler safety device. Installation
device, installation of automatic control of lowest water level,
police and stop, automatic ignition of boiler, automatic adjustment
of fire power, digestion protection, safe operation to ensure.
Boiler softener enters the corresponding machinery first, and
should be preheated by machinery (simultaneous cooler) and then
returned to the study barrel.
Brief Introduction of Boiler Operating Conditions
The boiler can work tightly in 80%100% working conditions. In 100%
nominal load, the operational parameters of the Kettle are: feeding
water temperature 20C, nominal working pressure 1.25MPa, and ten
tons of 193.4C steam can be produced in an hour. If the fuel UST
Vel is natural gas, calculated thermal efficiency is 98.96%,
exhaust temperature is 48.93 Graus Celsius, and fuel consumption is
754.78Nm3 /h (the product is used for a day).Low calorific value of
natural gas (>36.36 MJ /Nm3).
Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance
Technical Parameters
| Main Technical parameters of WNS Series Steam Boiler |
| Item | Unit | WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 | WNS6 | WNS10 | WNS15 | WNS20 |
| Steam Capacity | t/h | 0.5 | 1 | 2 | 3 | 4 | 6 | 10 | 15 | 20 |
| Working Pressure | MPa | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Steam Temperature | ℃ | 184 | 193 | 193 | 193 | 193 | 193 | 193 | 193 | 193 |
| Feed Water Temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 | 104 | 104 | 104 |
| Thermal Efficiency | / | ≥96% |
| Fuel | / | Natural gas, liquefied gas, city gas, light oil |
| Fuel Consumption | Natural gas | NM3/h | 37 | 73 | 145 | 217 | 289 | 435 | 735 | 1101 | 1467 |
| Liquefied gas | Kg/h | 30 | 58 | 117 | 174.5 | 232 | 351 | 589 | 871 | 1151 |
| City gas | NM3/h | 79 | 157 | 309 | 462 | 615 | 943 | 1575 | 2357 | 3147 |
| Light oil | Kg/h | 32 | 61 | 121 | 182 | 243 | 367 | 601 | 906 | 1211 |
| Gas Feed pressure | Natural Gas | mbar | 70-100 | 100-150 | 100-150 | 150-200 | 150-200 | 150-200 | 150-200 | 150-300 | 150-300 |
| City Gas | mbar | 100-200 | 100-200 | 100-200 | 150-200 | 150-200 | 150-200 | 150-200 | 150-300 | 150-300 |
| Running water volume | M3 | 0.78 | 3.3 | 3.6 | 5.2 | 6 | 9 | 11.6 | 24.5 | 29 |
Note: the fuel consumption in the table is based on light oil low
calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low
calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low
calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low
calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.
| Shape and Interface Dimensions of WNS Biomass Steam boilers |
| Item | Unit | WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 |
| Transport Dimension (L*W*H) | / | mm | 2949*1454*1707 | 3198*1880*2166 | 4131*2247*2422 | 4485*2010*2402 | 4928*2250*2600 |
| Mainframe transport weight | / | t | 2.8 | 4.9 | 8 | 9 | 11 |
| Main Steam Valve Pipe Diameter | DN | mm | 40 | 65 | 80 | 100 | 100 |
| Feed Water Valve | DN | mm | 25 | 40 | 40 | 40 | 40 |
| Safety Valve Diameter | DN | mm | 40 | 2*40 | 2*40 | 2*50 | 2*50 |
| Drain Valve Pipe Diameter | DN | mm | 40 | 40 | 2*40 | 2*40 | 2*40 |
| Chimney Diameter | φ | mm | 250 | 280 | 300 | 400 | 400 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
