Product Description

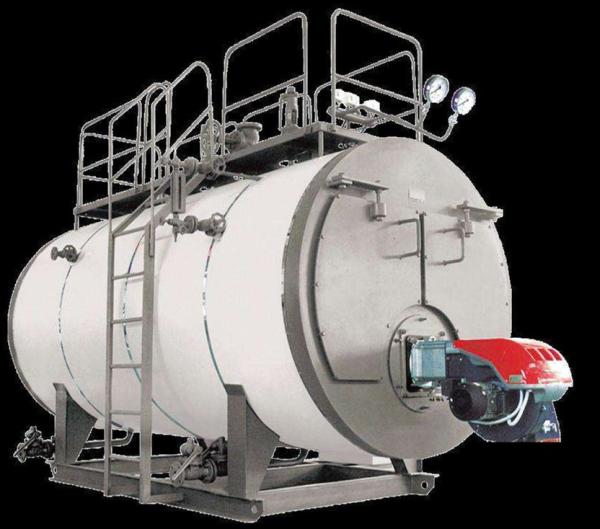

WNS Series High Efficiency Oil Fired Steam Boiler

The product model is Wns, a three -circuit horizontal combustion engine (gas), which quickly recharges an integrated wet -back structural boiler. The gallbladder and the recovery chamber are the first cycle, the second cycle is the exhaust pipe, and the third cycle consists of The boiler is equipped with a perfect automatic control and safety device to automatically control, alarm and disconnect the lowest water level, automatically ignite the boiler, automatically adjust the fire crane ft of the burner and flame protection.Installation of boilers.

Boiler soft water first reaches the condenser and then returns to the soft water tank after preheating the condenser (cooling off the exhaust gas at the same time). to be sent.

Brief Introduction of Boiler Operating Conditions
The Kettle can work tightly in 80%100% working conditions. In 100% nominal load, the operational parameters of the Kettle are: feeding water temperature 20C, nominal working pressure 1.25MPa, and ten tons of 193.4C steam can be produced in an hour. If the fuel UST Vel is natural gas, calculated thermal efficiency is 98.96%, exhaust temperature is 48.93 Graus Celsius, and fuel consumption is 754.78Nm3 /h (the product is used for a day).Low calorific value of natural gas (>36.36 MJ /Nm3).

Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance

Technical Parameters

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
