Product Description

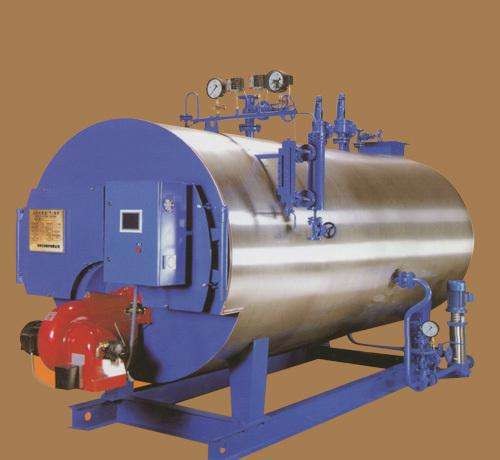

WNS Series High Efficiency Oil Fired Steam Boiler

The WNS model is an integrated three-liter boiler with a waterproof rear view. The corrugated machine room and the machine were the first to return, the second return was the flu, and the third return included economists and capacitors. The boiler has sophisticated automatic control equipment and automatic safety monitoring equipment for automatic water level control, alarm and low water level shutdown; automatic boiler control, automatic gearbox and flame protection to ensure safe operation of the boiler.

The boiler begins to vacuum the water and then pumps it to the reactor and back to the soft water tank (when heating the gas). Economics warm water is supplied to economists through a supply pump that is heated by professionals and sent to the body.

Brief Introduction of Boiler Operating Conditions
The boiler can be operated from 80% to 100% operating conditions. Below 100 rows, the operating components of the boiler are: water temperature 20 ° C, working pressure 1.25 MPa, 10 tons water per hour, temperature 193.4 ° C. If there is natural gas, the optimized cold power is 98.96, the temperature of fuel is 48.93 ° C, and fuel consumption is 754.78 Nm 3 / h (same day production). Natural gas has a low caloric value (> 36.36 MJ / NM3).


Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance

Technical Parameters

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
