Product Discription

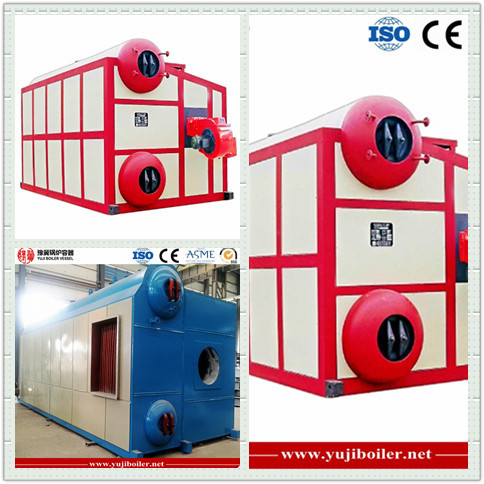

SZS Series Double Drum Oil and Gas Fired Steam Boiler

SZS series double drum oil & gas fired steam boiler is double drum, longitudinal type D-form layout, fast loading water tube boiler. This series of boilers are made of upper boiler drum and lower boiler drum, membrane wall, convection tubes and condenser, the fuel was burning in boiler furnace, flue gas discharge into chimney from convection tubes and waste heat recovery device. By using mechatronic structure, the performance being in the leading domestic level.

Product Features

1. Wide Variety of Applicable Fuel:

Large furnace area, fuel burning fully, particularly suitable for low calorific value fuels, such as coke oven gas, blast furnace gas etc. The burning effect of high calorific value fuels are much better, such as natural gas, liquefied gas etc.

2. With overload Capacity:

Large heating area, large furnace area, strong output, with a certain overload capacity.

3. Reasonable Structure:

Set front water wall at front of boiler furnace, convenient for fixing the head of burner, to ensure the water degree and cooling near the burner, contribute to eliminate the carbon deposition of burner, so that the fuel can combust more.

4. Easy Maintenance:

Set explosion door, fire hole and inspection door on boiler furnace wall, set manhole at front and back of boiler barrel, convenient for maintenance boiler.

5. Reduce Heat Loss:

Use thick insulation layer, reduce boiler heat loss, and increase the thermal efficiency.

6. Long Life and Durable:

Excellent professional design, advanced production processes, strict quality inspection control, is the quality assurance of each boiler, the service life of normal use boiler all above 20 years.

Techinical Parameters

Main Parameters of SZS Series Oil & Gas Fired Steam Boiler

Remarks: The fuel consumption in above table are counted the low calorific value of light oil as 42915 KJ/Kg(10260Kcal/Kg), the low calorific value of natural gas as 35588 KJ/NM3(8500Kcal/NM3), the low calorific value of liquefied oil as 45998 KJ/Kg(11000Kcal/Kg), the low calorific value of city gas as 16750 KJ/NM3(4000Kcal/NM3).

External and Interface Dimension of SZS Series Oil & Gas Fired Steam Boiler

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

Application

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
