Product Discription

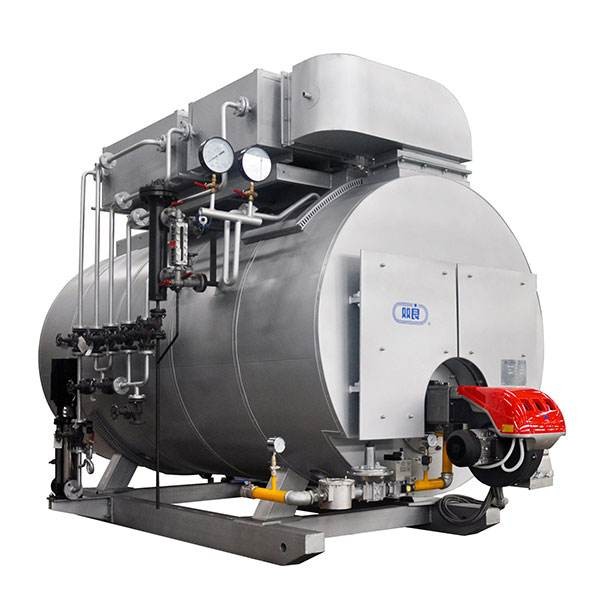

WNS Condensing Steam Boiler

The product model is WNS. This is a horizontal, three -way combustion fuel (gas) high -speed integrated boiler with a wet back structure.The wave -form tank and the ignition chamber comprise the first, the second the flue gas pipe, and the third is an economist and a condenser.

This product is light oil, natural gas, etc. The fuel is expelled from the burner, ignited by an electric lighter, and burned in the furnace under a slightly positive pressure. The high -temperature smoke enters the twisted pipes at 180 -degree after combustion and enters the first smoke chamber through the smoking pipe.

Product Features

1. Grounds for design:

Horizontal internal combustion, three -cycle complete wet tail structure, 100 -percent hydraulic design, 100 -percent wave furnace bladder, good range of temperature and reasonable structural arrangement.

2. High efficiency and energy saving:

The thermal efficiency of the furnaces may exceed 96% and, if capacitors are installed, the efficiency may exceed 100% if the furnaces are equipped.

3. Production specifications:

Parts of boilers shall be manufactured in accordance with national and international standards (ISO). Advanced manufacturing technologies are closely monitored at all stages of production to ensure product quality.

4. Main steam chamber:

As steam -drying helps to eliminate excess condensation, reduce fuel consumption, scale and prolongation of life, coke has sufficient steam room to handle load and peak fluctuations and provides steam high quality drying.

5. Duration and durability:

The quality of all the boilers in the Henan and Hebei regions is ensured by excellent technical design, advanced manufacturing technology and strict quality control.

Technical Parameters

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
