Product Discription

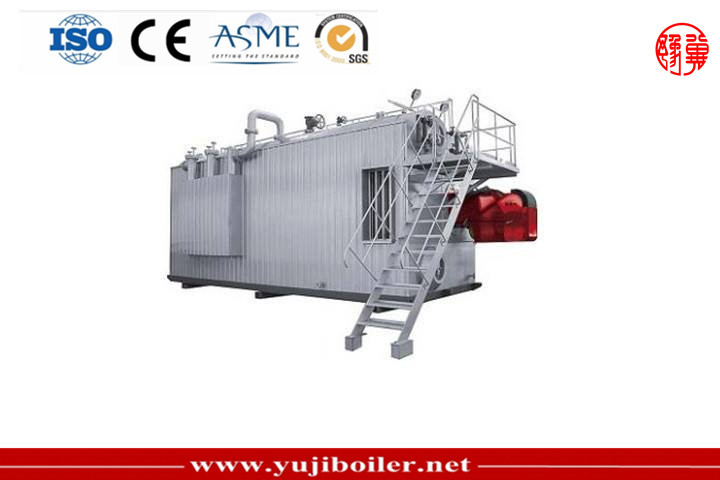

SZS Series Double Drum Oil and Gas Fired Steam Boiler

The steam boilers of the SZS series are double drums, longitudinal -D series, fast steam boilers. The boiler series consists of upper and lower drums, membrane walls, convection pipes and capacitors. Fuel is burned in the boiler. Liquid gas is piped from the convection pipes into the chimney and waste heat recovery plant. With the mechatronic structure, the performance in China is leading.

Product Features

1. Miscellaneous fuels:

The range of furnaces is large, the combustion of fuels is sufficient, especially suitable for low -calorific fuels such as coke oven gases, blast furnace gas, etc. The combustion efficiency of high -calorific fuels is better, such as natural gas, liquefied gas, etc.

2. Overload capacity:

The heating area is large, the furnace area is large, the power is strong and has a certain overcharging capacity.

3. Appropriate structure:

The front water wall in front of the boiler is easy to fix the burner head, ensure the water level and cooling near the burner, eliminate the carbon stock in the burner and complete the combustion of the fuel.

4. Easy maintenance:

The explosion -proof door, the fire -resistant hole and the overhaul door are mounted on the wall of the boiler and the overhaul hole is placed on the front and back of the boiler water to facilitate the overhaul of the boiler.

5. Reduction of heat loss:

A thick insulation layer is used to reduce the heat loss of the boiler and to improve the heat efficiency.

6. Long service life and durability:

Excellent professional design, advanced manufacturing technology, strict quality control and control are the quality assurance of each boiler. The normal life of the boiler is more than 20 -years.

Techinical Parameters

Main Parameters of SZS Series Oil & Gas Fired Steam Boiler

Remarks: The fuel consumption in above table are counted the low calorific value of light oil as 42915 KJ/Kg(10260Kcal/Kg), the low calorific value of natural gas as 35588 KJ/NM3(8500Kcal/NM3), the low calorific value of liquefied oil as 45998 KJ/Kg(11000Kcal/Kg), the low calorific value of city gas as 16750 KJ/NM3(4000Kcal/NM3).

External and Interface Dimension of SZS Series Oil & Gas Fired Steam Boiler

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

     It is one of the ten most famous towns in Zhongzhou, which is adjacent to National Highway 107 in the South and Beijing-Guangzhou Railway in the north. The company has the B-class boiler manufacturing license issued by the General Administration of Inspection and Quarantine of the State Quality Supervision Bureau and the D1 and D2-class pressure vessel manufacturing license. It is a comprehensive manufacturer of steam boilers, hot water boilers, heat carrier boilers, pressure vessels of Class I and II and auxiliary machines for various boilers. The company was founded in 1987.

     After relocation and expansion, it now has perfect production equipment and testing means, a high-quality staff and technical team, and has established and improved a set of quality assurance system. The quality policy of "quality-oriented, safety first, energy-saving, environmental protection, refinement" and "the pass rate of main parts inspection is over 95%, the pass rate of welding seam inspection is over 98%, the pass rate of product inspection is 100%, the pass rate of products manufactured is 100%, and the implementation rate of regulations and standards is 100%" have been formulated.

Product quality is safe and reliable, environmental protection and energy saving, and conforms to the national standards and industry standards. Pressure vessel products are inspected by the quality and technical supervision department and issued with product inspection certificate.

Xinxiang Xinguo Container Manufacturing Co., Ltd. is willing to cooperate sincerely with friends from all walks of life to create brilliance!
