CLSH Series high efficiency oil fired boiler Normal Hot Water
Boiler
Product Discription

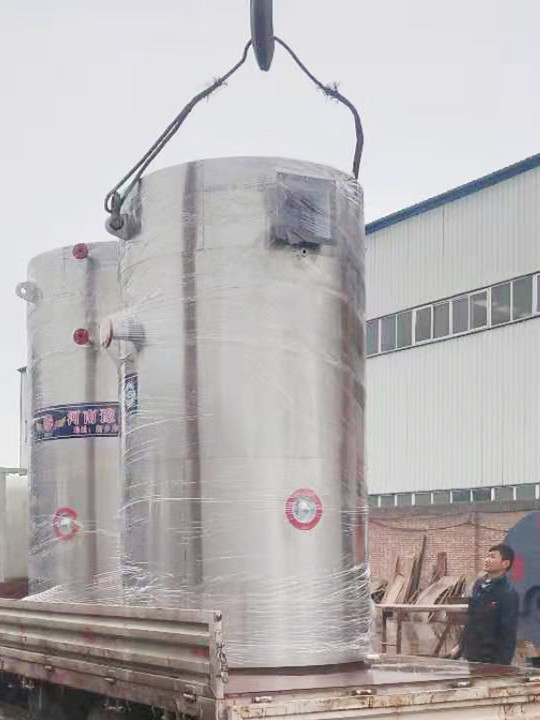

LSH Series Vertical Biomass Fired Hot Water Boiler
1. High efficiency grate:
Boiler grate adopts double side ventilation, which is brought
naturally to the front end of boiler row by dust cleaning
technology, which avoids air leakage, fuel leakage and uneven
ventilation, and is easy to operate, and has obvious advantages
compared with ordinary grate.
2. Convenient ash cleaning:
Many ash cleaning holes can be set up on the boiler, which can
remove ash in time and effectively, avoid the trouble of operation
and decrease of thermal efficiency caused by boiler ash
accumulation, and ensure the stability of boiler load.
3. High safety:
The water supply is controlled by microcomputer, and the water is
fed automatically. Equipped with water shortage, overpressure
protection and other devices, safe and reliable.
4. Longevity and durability:
The professional excellent design of the boiler, the advanced
production equipment and the strict quality inspection, is the
guarantee of the quality of every new boiler boiler, and the
service life of the normal boiler body is over 20 years.
5. Environmental protection and low noise:
The boiler's original smoke emission is low, and the boiler tail is
equipped with high-efficiency dust remover and low noise fan, which
makes the flue gas discharge meet the national environmental
protection requirements.
6. Manufacturing specification:
Every part of boiler is manufactured in accordance with the
national standard and international standard (ISO). Every
production step is carried out in strict accordance with the
advanced production process to ensure the quality of the product is
reliable.
7. High-quality services:
Technical services, installation guidance, regular and irregular
return service to users, at any time to provide high-quality and
perfect services, so that users can buy at ease, with comfort.
Product Parameters
| Item | Unit | LSH0.1 | LSH0.2 | LSH0.3 | LSH0.49 | LSH0.7 |
| Thermal Power | MW | 0.14 | 0.21 | 0.35 | 0.49 | 0.7 |
| Outlet Pressure | MPa | 0.4 | 0.4 | 0.4 | 0.4 | 0.4/0.7 |
| Outlet Temperature | ℃ | 95 | 95 | 95 | 95 | 95 |
| Feed Water Temperature | ℃ | 70 | 70 | 70 | 70 | 70 |
| Thermal Efficiency | / | ≥81 |
| Fuel | / | Fuel |
| Fuel Consumption | Kg/h | 35 | 52 | 88.4 | 121.8 | 176 |
| Heating area | m2 | 9.1 | 11.73 | 19.57 | 26.35 | 36.09 |
| Grate area | m2 | 0.36 | 0.48 | 0.95 | 1.13 | 1.47 |
| Power consumption | Kw | 4.5 | 5.5 | 9.5 | 11.5 | 11.5 |
| water volume | m3 | 0.88 | 1.33 | 1.96 | 2.82 | 3.72 |
Note: the fuel consumption in the table is calculated on the basis of
the low calorific value of biomass particles 17084KJ/Kg
(4085Kcal/Kg). If the low calorific value of biomass fuel is larger
than this value, the corresponding fuel consumption will be more
economical than the value in the table.
External and Interface Dimension of SZL Biomass Hot Water boiler
| Item | Unit | LSH0.14 | LSH0.21 | LSH0.35 | LSH0.49 | LSH0.7 |
| Thermal Power | MW | 0.14 | 0.21 | 0.35 | 0.49 | 0.7 |
Transport Dimension
| L | mm | 910 | 1020 | 1320 | 1420 | 1620 |
| H | mm | 2900 | 3200 | 3680 | 3870 | 4380 |
| Maximum Transport Weight | / | t | 0.98 | 1.6 | 2.88 | 3.67 | 4.8 |
| Outlet Water Valve | DN | mm | 40 | 40 | 50 | 80 | 80 |
| Feed Water Valve | DN | mm | 40 | 40 | 50 | 80 | 80 |
| Safety Valve Diameter | DN | mm | 32 | 32 | 32 | 32 | 32 |
| Drain Valve Pipe Diameter | DN | mm | 40 | 40 | 40 | 40 | 40 |
| Chimney Diameter | φ | mm | 220 | 280 | 280 | 280 | 280 |
Remarks: We will reserve rights to change the above mentioned data
due to continuous policy transformation and product improvement.
