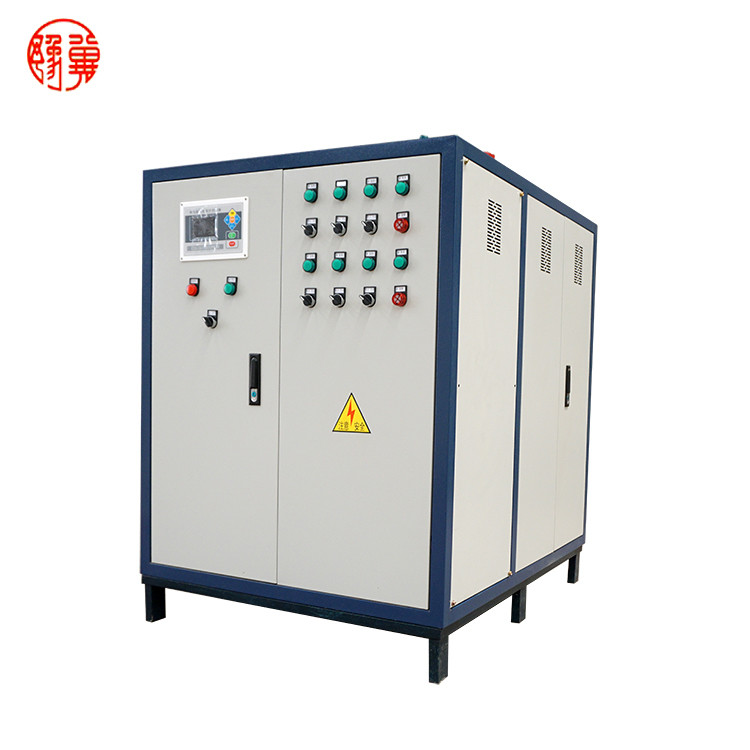

New type 200kg 7bar pressure vertical electric steam boiler
genererator
LDR electric heating series rapid steam generator is a small
vertical automatic heating equipment, produce steam fast (about 3 ~
5 minutes), high thermal efficiency, internal to the stand pipe
structure, the water volume is small, safe without annual
inspection, the overall appearance of complete equipment.
Model | Rated evaporation capacity (kg/h) | Rated steam pressure (Mpa) | Rated electric power(kw) | Thermal efficiency (％) | Steam temperature(℃) | Dimension (m) | Weight (kg) |
LDR0.016-0.4/0.7 | 16 | 0.4/0.7 | 12 | ≥99 | 152/170 | 0.55×0.4×1.0 | 90 |
LDR0.024-0.4/0.7 | 24 | 0.4/0.7 | 18 | ≥99 | 152/170 | 0.7×0.5×1.0 | 90 |
LDR0.032-0.4/0.7 | 32 | 0.4/0.7 | 24 | ≥99 | 152/170 | 0.7×0.5×1.0 | 96 |
LDR0.05-0.4/0.7 | 50 | 0.4/0.7 | 36 | ≥99 | 152/170 | 0.7×0.5×1.0 | 96 |
LDR0.065-0.4/0.7 | 65 | 0.4/0.7 | 48 | ≥99 | 152/170 | 0.7×0.5×1.0 | 96 |
LDR0.075-0.4/0.7 | 75 | 0.4/0.7 | 54 | ≥99 | 152/170 | 0.7×0.5×1.0 | 102 |
LDR0.1-0.4/0.7 | 100 | 0.4/0.7 | 72 | ≥99 | 152/170 | 0.7×0.5×1.0 | 105 |
LDR0.15-0.4/0.7 | 150 | 0.4/0.7 | 108 | ≥99 | 152/170 | 1.0×0.9×1.1 | 170 |
LDR0.2-0.4/0.7 | 200 | 0.4/0.7 | 144 | ≥99 | 152/170 | 1.0×0.9×1.1 | 185 |
Advantages:
1. Rapid steam generation
After the boiler is started, steam is quickly generated (3 to 5
minutes), reaching high temperature and high pressure in a short
time
2. High thermal efficiency, save fuel and reduce costs
⑴Erected water pipe structure inside, small water volume, fast heat
absorption
⑵The interior uses a membrane wall structure to increase the heat
absorption area and reduce heat loss
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure
vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE
certificate of EU. We also can provide ASME, GHOST and other
necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is
better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for
bulk order and door to door delivery service is also available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time
maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for
installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk,
straw, biomass pellet, diesel, light oil, natural gas, city gas,
liquefied gas etc.
